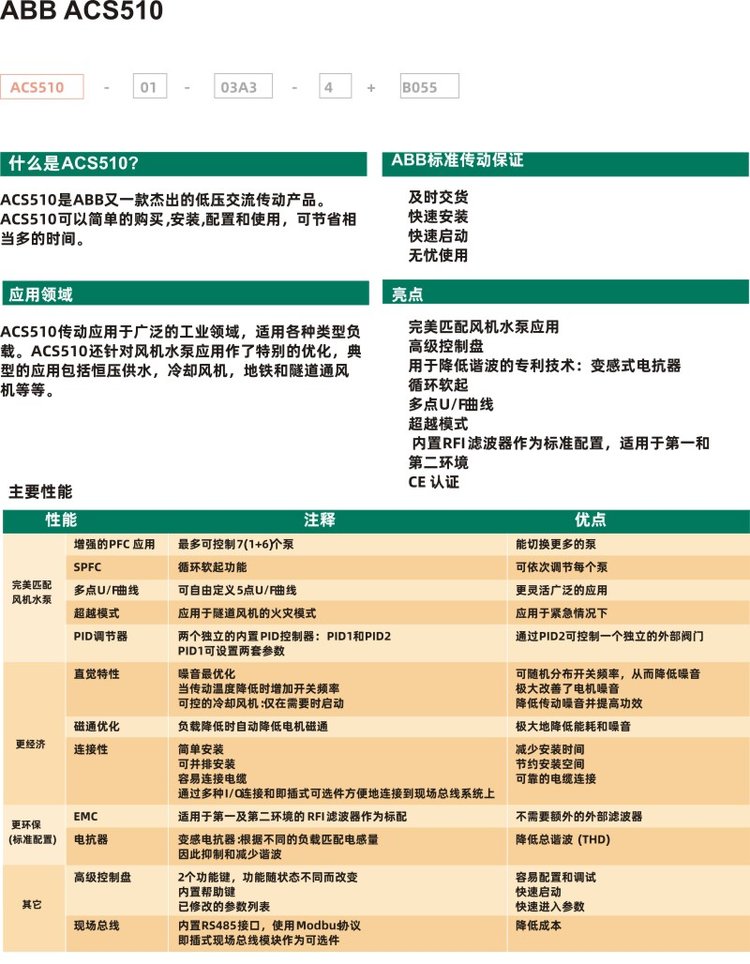

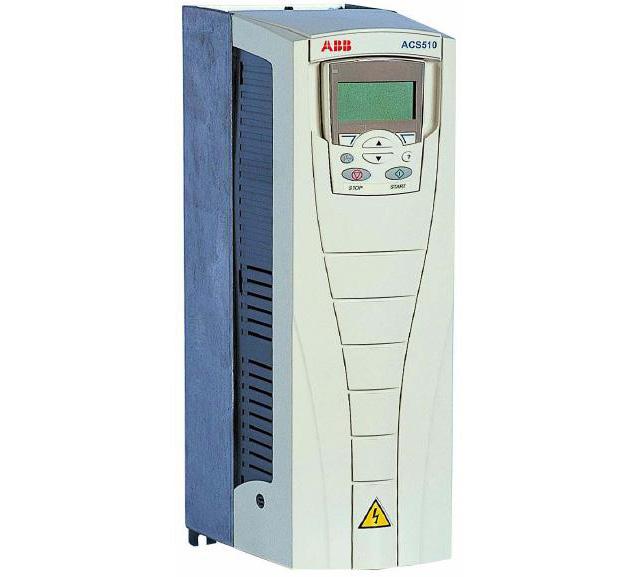

ACS510是ABB又一款杰出的低压交流传动产品。它应用于广泛的工业领域，适用各类型负载。
ACS510还针对风机、水泵应用做了特别的优化，典型的应用包括恒压供水，冷却风机，地铁和隧道通风机等等。
CE认证

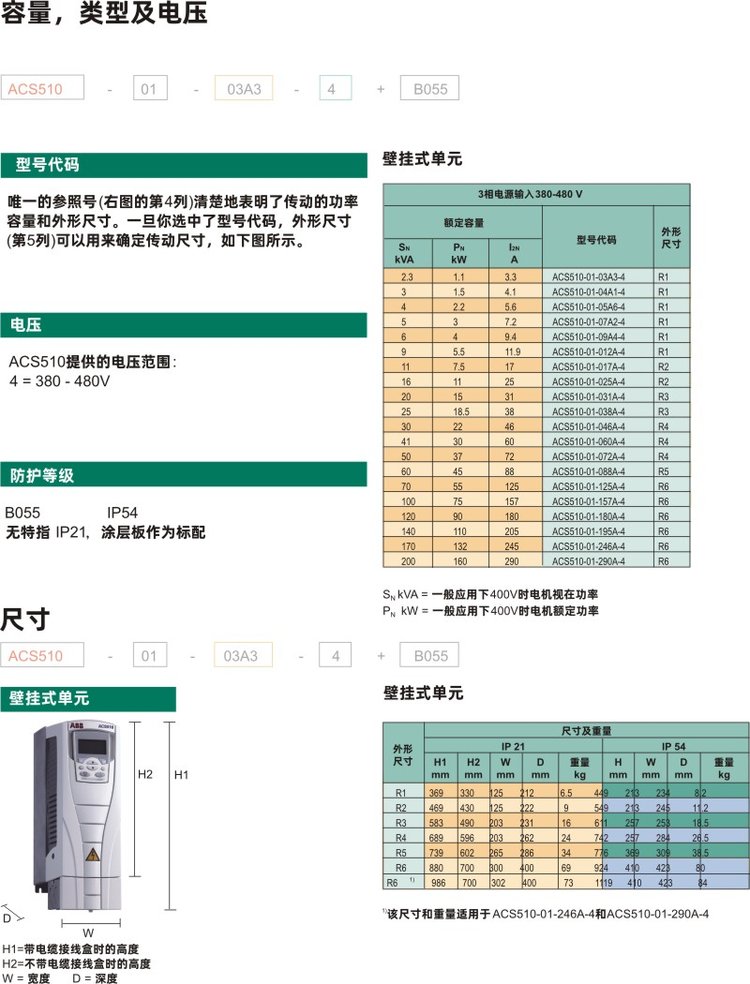

| 输入电压:三相AC380V~480V（频率：50/60Hz；价格不含控制盘；防护等级IP21) | |||||
| Code No. 产品代号 | Type 产品型号 | Square Torque 平方转矩应用 | Frame Size 规格 | ||
| PN（kW ） 电机额定功率 | I2N（A） 额定输出电流 | ||||
| 3ABD00015741-D | ACS510-01-03A3-4 | 1.1 | 3.3 | R1 | |
| 3ABD00015742-D | ACS510-01-04A1-4 | 1.5 | 4.1 | ||
| 3ABD00015743-D | ACS510-01-05A6-4 | 2.2 | 5.6 | ||
| 3ABD00015744-D | ACS510-01-07A2-4 | 3 | 7.2 | ||
| 3ABD00015745-D | ACS510-01-09A4-4 | 4 | 9.4 | ||
| 3ABD00015746-D | ACS510-01-012A-4 | 5.5 | 11.9 | ||
| 3ABD00015747-D | ACS510-01-017A-4 | 7.5 | 17 | R2 | |
| 3ABD00015748-D | ACS510-01-025A-4 | 11 | 25 | ||
| 3ABD00015749-D | ACS510-01-031A-4 | 15 | 31 | R3 | |
| 3ABD00015750-D | ACS510-01-038A-4 | 18.5 | 38 | ||
| 3ABD00021615-D | ACS510-01-046A-4 | 22 | 46 | ||
| 3ABD00015752-D | ACS510-01-060A-4 | 30 | 60 | R4 | |
| 3ABD00015753-D | ACS510-01-072A-4 | 37 | 72 | ||
| 3ABD00021616-D | ACS510-01-088A-4 | 45 | 88 | ||
| 3ABD00019055-D | ACS510-01-125A-4 | 55 | 125 | R5 | |
| 3ABD00015756-D | ACS510-01-157A-4 | 75 | 157 | R6 | |
| 3ABD00015757-D | ACS510-01-180A-4 | 90 | 180 | ||
| 3ABD00015758-D | ACS510-01-195A-4 | 110 | 205 | ||
| 3ABD00022031-D | ACS510-01-246A-4 | 132 | 245 | ||
| 3ABD00027039-D | ACS510-01-290A-4 | 160 | 290 | ||
| 输入电压:三相AC380V~480V（频率：50/60Hz；价格不含控制盘；防护等级IP54) | |||||
| Code No. 产品代号 | Type 产品型号 | Square Torque 平方转矩应用 | Frame Size 规格 | ||
| PN（kW ） 电机额定功率 | I2N（A） 额定输出电流 | ||||
| 3ABD00015759-D | ACS510-01-03A3-4+B055 | 1.1 | 3.3 | R1 | |
| 3ABD00015760-D | ACS510-01-04A1-4+B055 | 1.5 | 4.1 | ||
| 3ABD00015761-D | ACS510-01-05A6-4+B055 | 2.2 | 5.6 | ||
| 3ABD00015762-D | ACS510-01-07A2-4+B055 | 3 | 7.2 | ||
| 3ABD00015763-D | ACS510-01-09A4-4+B055 | 4 | 9.4 | ||
| 3ABD00015764-D | ACS510-01-012A-4+B055 | 5.5 | 11.9 | ||
| 3ABD00015765-D | ACS510-01-017A-4+B055 | 7.5 | 17 | R2 | |
| 3ABD00015766-D | ACS510-01-025A-4+B055 | 11 | 25 | ||
| 3ABD00015767-D | ACS510-01-031A-4+B055 | 15 | 31 | R3 | |
| 3ABD00015768-D | ACS510-01-038A-4+B055 | 18.5 | 38 | ||
| 3ABD00021617-D | ACS510-01-046A-4+B055 | 22 | 46 | ||
| 3ABD00015770-D | ACS510-01-060A-4+B055 | 30 | 60 | R4 | |
| 3ABD00015771-D | ACS510-01-072A-4+B055 | 37 | 72 | ||
| 3ABD00021618-D | ACS510-01-088A-4+B055 | 45 | 88 | ||
| 3ABD00019056-D | ACS510-01-125A-4+B055 | 55 | 125 | R5 | |
| 3ABD00015774-D | ACS510-01-157A-4+B055 | 75 | 157 | R6 | |
| 3ABD00015775-D | ACS510-01-180A-4+B055 | 90 | 180 | ||
| 3ABD00015776-D | ACS510-01-195A-4+B055 | 110 | 205 | ||
| 3ABD00022032-D | ACS510-01-246A-4+B055 | 132 | 245 | ||
| 3ABD00027042-D | ACS510-01-290A-4+B055 | 160 | 290 | ||
| ACS510可选项 Option | |||||
| Code No. | Option Name | Type | |||
| 产品代号 | 可选项名称 | 产品型号 | |||
| 3ABD64739000 | 基本控制盘 Basic Control Panel | ACS-CP-C | |||
| 3ABD68232902 | 高级中文控制盘 Assistant Control Panel for Asia | ACS-CP-D | |||
| 3ABD68294673 | 螺钉式控制盘安装组件；含一根3米长电缆,一个密封垫,固定螺钉和安装图样 | ACS/H-CP-EXT | |||
| 3ABD0000013086 | 控制盘安装套件；含一根3米长电缆，可插拔面板的安装支架 | OPMP-01 | |||
| 3ABD00014656 | 托架式控制盘安装组件；含一根3米长电缆,一个塑料固定托架 | ACS/H-CP-CABINET | |||
| 3ABD68300029 | 控制盘3米连线 | OCAT-02 | |||
| 3AUA0000002040-D | 继电器输出扩展模块 Relay Output Extension | OREL-01 | |||
| 3AUA0000003489-D | (110/230V)/24V数字输入转换模块 | OHDI-01 | |||
| 制动斩波器(外装)和制动电阻 Brake Chopper(separate kit) and Brake Resistor | |||||
| 3ABD00017551 | 法兰安装件用于R1 | Flange Mounting Set, R1 | FMS-R1 | ||
| 3ABD00017550 | 法兰安装件用于R2 | Flange Mounting Set, R2 | FMS-R2 | ||
| 3ABD00017549 | 法兰安装件用于R3 | Flange Mounting Set, R3 | FMS-R3 | ||
| 3ABD00017548 | 法兰安装件用于R4 | Flange Mounting Set, R4 | FMS-R4 | ||
| 3ABD00017552 | 法兰安装件用于R5 | Flange Mounting Set, R5 | FMS-R5 | ||
| 3ABD00017553 | 法兰安装件用于R6 | Flange Mounting Set, R6 | FMS-R6 | ||
| 输出滤波器 du/dt Filter | |||||
| Type | Output Choke | ||||
| 产品型号 | 输出滤波器型号 | ||||
| ACS510-01-03A3-4 | NOCH0016-6X | ||||
| ACS510-01-04A1-4 | |||||
| ACS510-01-05A6-4 | |||||
| ACS510-01-07A2-4 | |||||
| ACS510-01-09A4-4 | |||||
| ACS510-01-012A-4 | |||||
| ACS510-01-017A-4 | |||||
| ACS510-01-025A-4 | NOCH0030-6X | ||||
| ACS510-01-031A-4 | |||||
| ACS510-01-038A-4 | |||||
| ACS510-01-046A-4 | NOCH0070-6X | ||||
| ACS510-01-060A-4 | |||||
| ACS510-01-072A-4 | |||||
| ACS510-01-088A-4 | |||||
| ACS510-01-125A-4 | NOCH0120-6X | ||||
| ACS510-01-157A-4 | FOCH0260-70 | ||||
| ACS510-01-180A-4 | |||||
| ACS510-01-195A-4 | |||||
| ACS510-01-246A-4 | |||||
| ACS510-01-290A-4 | FOCH0320-50 | ||||
